Rotary Pleating Machine

This product has been discontinued and removed from our shelves.

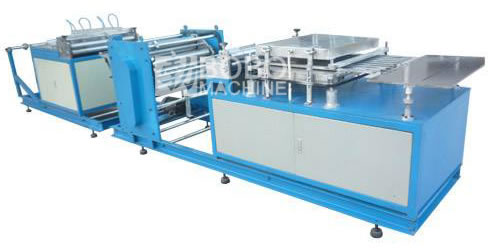

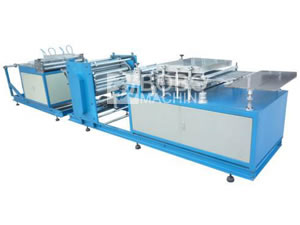

The filter paper rotary pleating machine consists of a multi-part conveyer system to facilitate decoiling, pre-slitting, counting, pleating, and heat forming. The pleating roller can be swapped out to accommodate various pleating sizes. The properly pleated paper is mainly utilized for oil filter, fuel filter, and other such applications. The filter paper thickness and width can be calibrated to your specifications. BOBO offers a one year parts warrantee with the purchase of every rotary pleating machine.

Technical Specifications
Available paper width: 90mm~320mm (can be customized)
Pleat height range: 20mm ~67mm,
Work speed: 5~35meters/min, adjustable
Temp. control range: 0~300℃
Heater power: 8.5kw
Motor power: 1 kw
Conveyer belt speed: 0~5m/min.
Working air pressure: 0.6Mpa.
Power voltage: 380V/50Hz.
Dimension: 7500 x 950 x 1750mm
Weight: 1100kg

BOBO Machine is a China-based rotary pleating machine manufacturer. We provide various types of products such as steel ball making machine, Polyurethane Spray Foam Machine, filter core making machine, and spiral duct machine.
